Hydraulic cylinder -CD_CG250 & CD_CG350 heavy cylinders

  • Hydraulic cylinder -CD_CG250 & CD_CG350 heavy cylinders
  • Hydraulic cylinder -CD_CG250 & CD_CG350 heavy cylinders
  • Hydraulic cylinder -CD_CG250 & CD_CG350 heavy cylinders
  • Hydraulic cylinder -CD_CG250 & CD_CG350 heavy cylinders

Hydraulic cylinder -CD_CG250 & CD_CG350 heavy cylinders

    Payment Type: T/T
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 5 Ton
    Delivery Time: 30 Days
    Packaging: Export standard packing
    Productivity: 500tons per month
    Brand: A&M
    Transportation: Ocean,Land,Air
    Place of Origin: CHINA
    Supply Ability: 500tons per month
    Certificate: ISO SGS
    HS Code: 8431390000
    Port: Tianjin

Product Description

Product Description

This product installation and connection dimensions in accordance with German steel standard and ISO3320, especially suitable for bad environment and heavy working conditions, widely used in iron and steel, casting, forging and mechanical manufacturing industry.

MODEL INSTRUCTION

TECHNICAL FEATURE

01.The dynamic seal adopts a V-type seal ring set suitable for high speed and high pressure, or a slip ring combination seal with low friction coefficient and low friction at low speed and low pressure. 02.The hydraulic cylinder is a double-acting single-piston type with differential cylinder and constant-speed cylinder. Optional adjustable buffer (with adjustable flow valve)

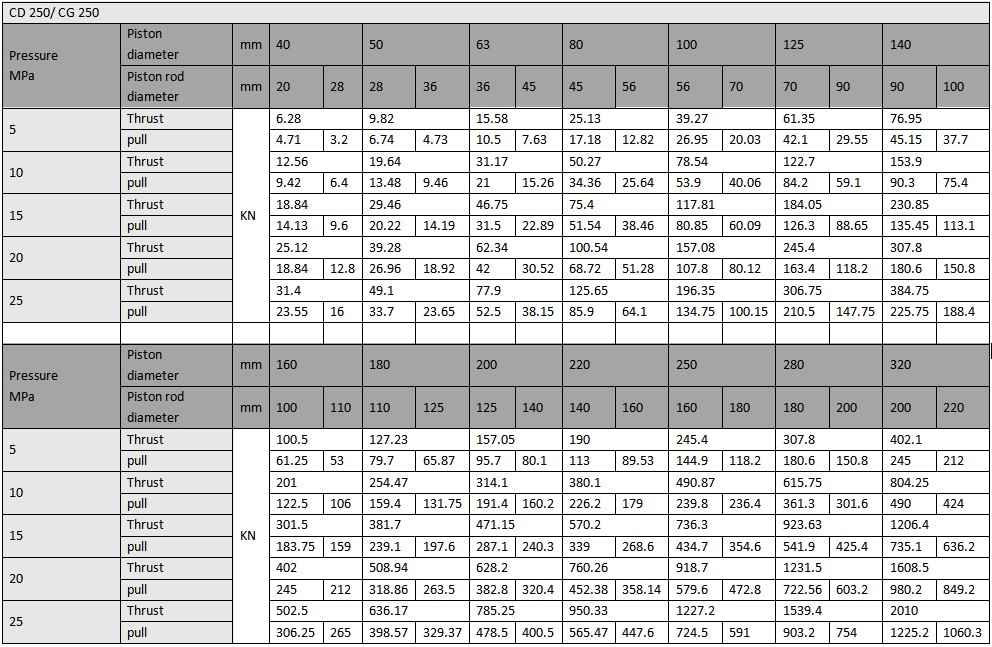

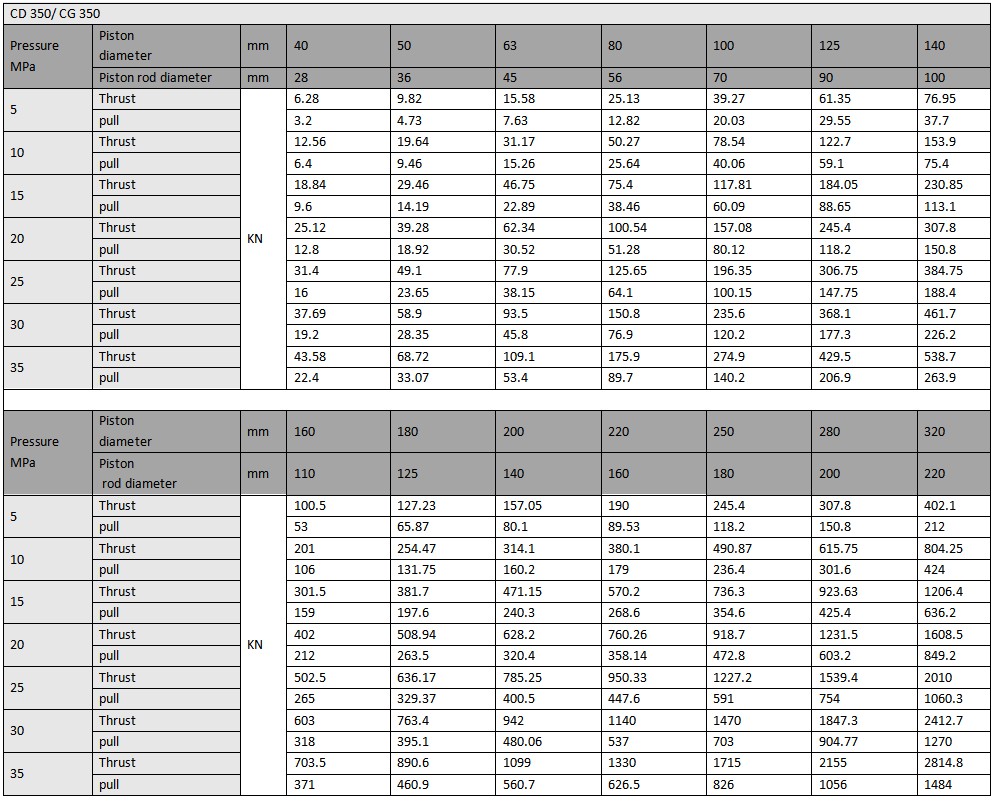

SPECIFICATION

APPLICATION AREA

This series is used in the harsh environment and heavy load of steel, casting, forging and machinery manufacturing industries..
