Model No.: Lonn-4GX
Product Description
Air Compressor Water Truck Fuel Pressure Transmitter
Product Information Of Air Compressor Water Truck Fuel Pressure Transmitter
Air compressor water truck fuel pressure transmitter LONN-4GX high temperature pressure transmitter adopts the high-accuracy and high-stability force sensitive chip with stainless steel isolation diaphragm to realize temperature and linear compensation, signal amplification, V/I switch, inverse polarity protection, and current limiting when pressure overloaded through laser resistor trimming and advanced thick-film technology. It outputs industry-standard 4-20mA or 0.5-4.5V signal. The process connection comes with a radiator to lower the temperature so as to have a good measurement result.It can be used to measure the gauge pressure, absolute pressure and negative pressure of corrosive gases, liquids and steam in the fields of petroleum, chemical industry, metallurgy, electric power and environmental protection. It can also be used to measure the pressure under low vacuum, atmospheric pressure and harsh environment.

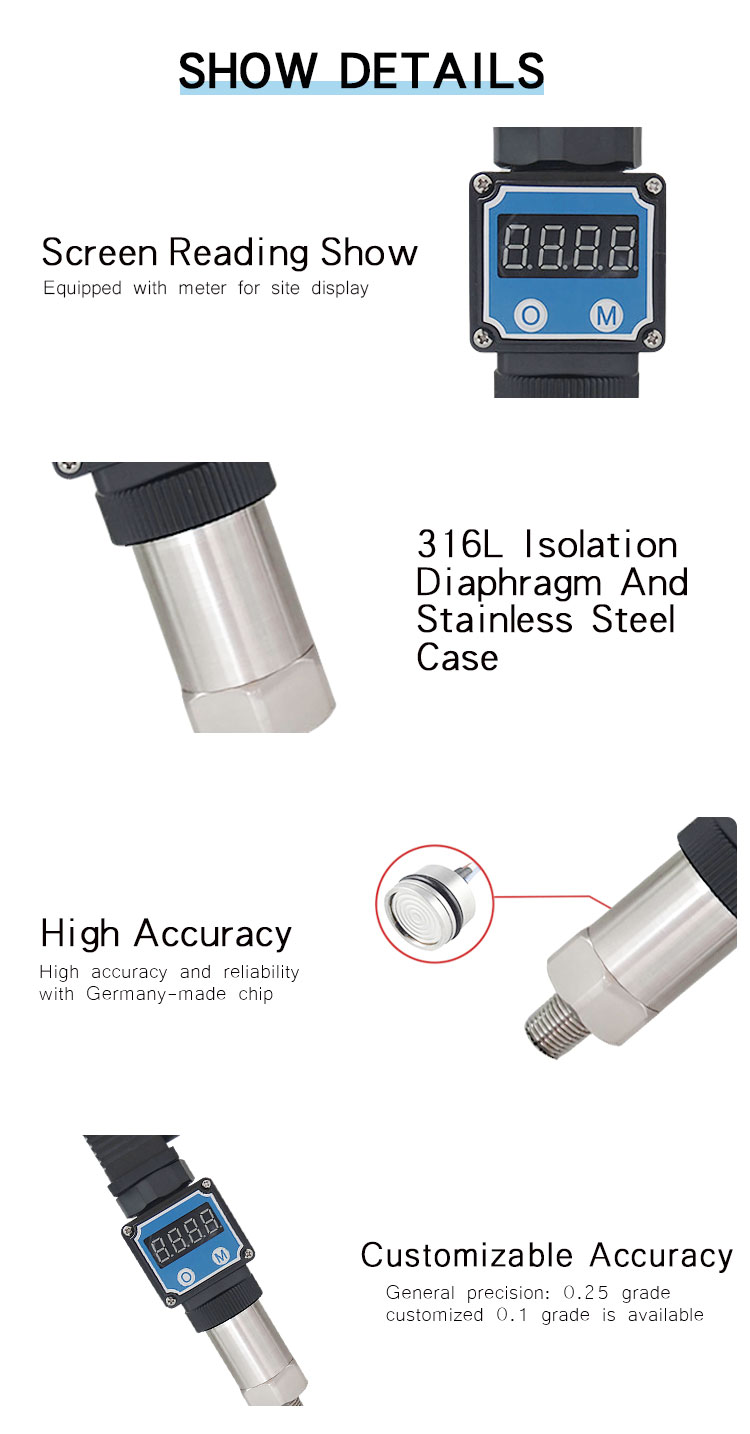

Details Of Air Compressor Water Truck Fuel Pressure Transmitter
Specification Of Air Compressor Water Truck Fuel Pressure Transmitter
| Range | -100～0～5, 100, 500, 800, 1000kPa 0～2, 10……100MPa | ||
| Pressure type | Gauge pressure, negative pressure and absolute pressure | ||
| Output signal | 4～20mA, 4～20mA+HART protocol, 4～20mA+RS485 protocol | ||
| Input voltage | 12～36V DC | ||
| Accuracy | 0.1 | 0.2（0.25） | 0.5 |
| Nonlinear Repeatability Delaying
| 0.1 | 0.2（0.25） | 0.5 |
| Zero and sensitivity drift | 0.01 | 0.02（0.025） | 0.005 |
| Temperature compensation | -10℃～120℃ | ||
| Work temperature | -40～+150℃ | ||
| Long-term stability | ≤0.1±%FS/year | ||
| Response time | ＜1ms | ||
| Overload capacity | 200% | ||
| Load resistance | R=(U-12.5)/0.02-RD U=power voltage; RD=internal resistance of power source | ||
| Measurement medium | Corrosive media compatible with 316L | ||
| Diaphragm material | 316L stainless steel, heusler alloy C-276 | ||
| Case material | 1Cr18Ni9Ti | ||
| Protection rating | IP67 | ||
